Are you looking for a useful GD&T reference?

GD&T Basics Wall Poster

Price: Standard $75 | Heavy Duty $99

Our 24" × 36" GD&T Poster is the perfect reference tool for your workspace, featuring clear and detailed visualizations of essential GD&T symbols and concepts.

  • Choose Your Type: Standard (100# glossy paper, professional look — great for offices & classrooms) or Heavy Duty (synthetic, tear & water resistant — built for shop floors and high-use areas).

  • Shipped rolled in a sturdy protective tube so it arrives in perfect condition.

  • You’ll receive a confirmation email with tracking once it’s on the way (ships within 7–10 business days).

    Buy Now

    But wait, what's on it??

    We have combined all of the regularly referenced material and symbols from our GD&T courses and put them all on a large and easy to read 24" x 36" poster for quick reference.

    Comprehensive GD&T Symbol Interpretation and Inspection Criteria

    Quick reference descriptions for other common symbols and modifiers.

    Informative sections that help recall interpretation other GD&T concepts.

    Reference everything you need for your day to day GD&T tasks

    Concepts and Symbols Included on the Poster

    • Tolerance interpretation and inspection criteria for all 14 GD&T symbols for surfaces and features of size.
    • Descriptions for tolerance modifiers: MMC, LMC, Projected Tolerance, Free State, Independency, Tangent Plane, Between, All Around, Unequally Disposed.
    • Descriptions for misc. symbols: Datum Feature Symbol, Datum Targets, Continuous Feature, Basic Dimensions.
    • Reference section for MMB (Datum Shift) comprehension.
    • Reference section for SLOF ( Size, Location, Orientation, and Form) and the elements of control.
    • Reference section for Rule #1 of GD&T per the ASME 14.5 Standard.
    • Reference section for components of a feature control frame.

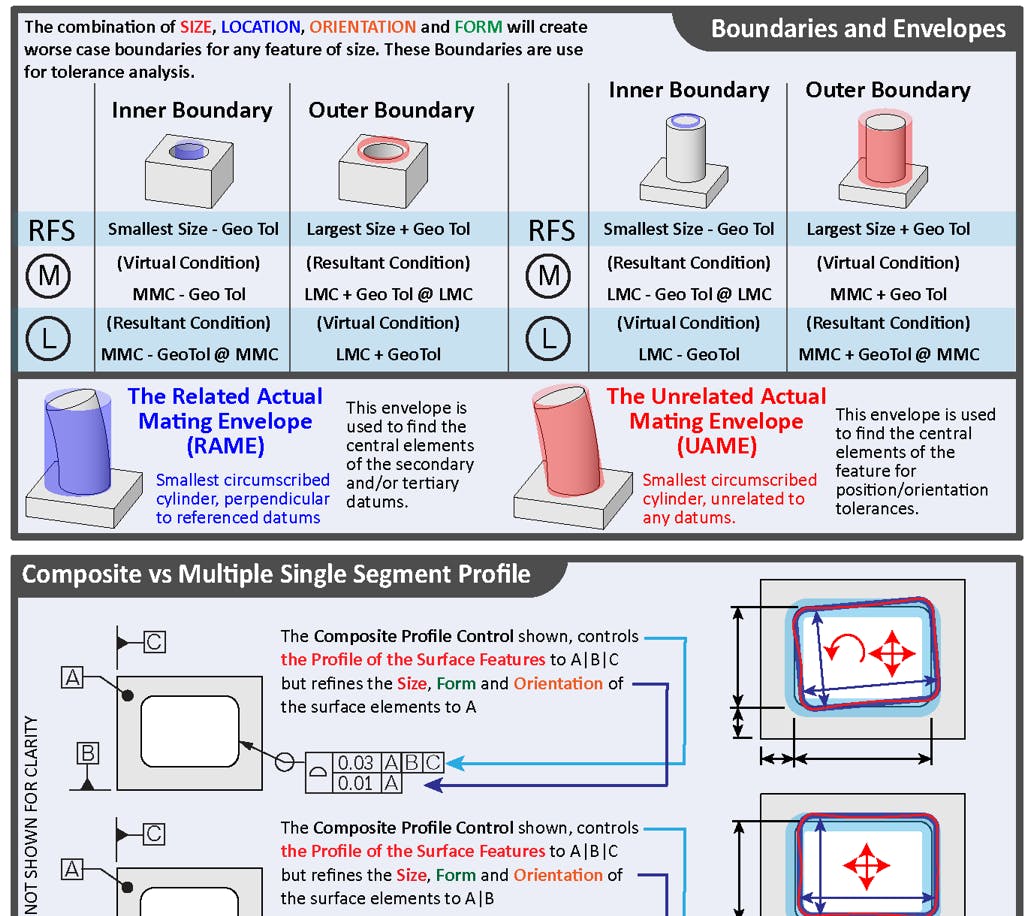

    • Reference section for design and inspection boundaries for features of size. (inner/outer boundaries as well as virtual and resultant conditions).
    • Reference section for understanding Unrelated Actual Mating Envelope vs Related Actual Mating Envelope
    • Reference section for Composite vs Multiple Single Segment Profile controls.
    • Reference section for Composite vs Multiple Single Segment Position controls.
    • Reference section for Diametric Position Reporting and Bonus Tolerance Calculations.

    Ready to Purchase?

    Click the button below to choose your poster type:

    You’ll be redirected to our secure store page, where you can select your option and complete your purchase.

    • Standard – $75
      • Glossy 100# paper, crisp professional look — perfect for offices and classrooms.
    • Heavy Duty – $99
      • Synthetic, tear- and water-resistant material — built for shop floors and high-use areas.
    BUY NOW

    FAQ – Your Poster Questions Answered

    • What’s the difference between the Standard and Heavy Duty posters?

      Both versions feature the exact same GD&T content and 24" × 36" layout — the difference is in the material.

      • Standard Poster ($75): Printed on premium glossy 100# paper stock, ideal for offices, classrooms, and light handling.

      • Heavy Duty Poster ($99): Printed on synthetic, tear- and water-resistant material, designed to withstand shop floors, manufacturing environments, and heavy daily use.

    • Is the GD&T Poster suitable for beginners?

      Yes! The poster is designed to be an easy-to-understand reference for all levels, from beginners to advanced users of GD&T.

    • Can I get a digital version of the poster to print myself?

      The poster is only available as a high-quality printed product. We do not provide digital files for printing.

    • Do you offer international shipping?

      At this time, we do not offer shipping internationally. We can only ship posters in the United States.

    • How is the poster shipped?

      All posters are shipped rolled in a sturdy tube to protect them during shipping. Once unrolled, the poster lies flat easily without creases, making it ready to use in your workspace, for teaching, or as a reference.

    • What size is the GD&T Poster?

      The poster is 24" x 36", making it large enough to be a useful reference tool for your workspace without being too bulky.

    • How long will it take for my poster to arrive?

      Once your order is processed for shipping, you’ll receive a confirmation email with tracking information. Your poster will typically arrive within 7-10 business days.

    • Is the Poster Based on the ASME 14.5 Standard?

      The Ultimate GD&T Poster is designed with the ASME Y14.5 standard as its foundation, and while the poster aligns specifically with ASME's guidelines, the core concepts of GD&T (Geometric Dimensioning and Tolerancing) are generally applicable across both ASME and ISO standards. The main differences between the two standards typically involve some specific terminology and certain tolerance applications. However, the fundamental principles—such as how to define the shape, orientation, location, and runout of features on a part—are consistent. So, even if you're working with ISO standards, the poster would still be a helpful reference for understanding key GD&T concepts, but with an ASME perspective in mind.

    • How durable is the GD&T Poster?

      Both versions of the Ultimate GD&T Poster are designed for easy handling and long-lasting display, but durability depends on which option you choose:

      • Standard Poster ($75): Printed on thick, glossy 100# paper stock. It offers a crisp, professional look and holds up well when hung in offices, classrooms, and training rooms. While not laminated or framed, the glossy finish protects the print and keeps it vibrant over time.

      • Heavy Duty Poster ($99): Printed on a synthetic material that is tear-resistant and water-resistant. This option is designed to withstand tough shop floor environments and frequent handling without the need for extra protection.

      If you’d like additional protection, either version can be laminated or framed after purchase.

    • What are the dimensions of the package the poster is shipped in?

      Each poster ships in a protective tube measuring 37" × 3"

    • Can I purchase the poster in bulk for my team or company?

      Yes! We offer bulk discounts for team or company orders. Please contact us for pricing and shipping options tailored to your group.
